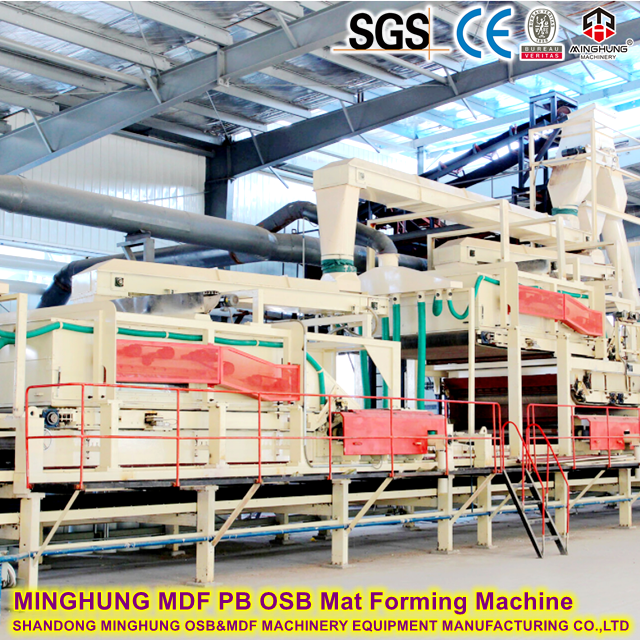

Do you know what is the Function of Mat forming for OSB production? and How the OSB mat forming works?
Paving head /Forming heads :
- Oscillating paving head: evenly distribute shavings by reciprocating motion.
- Star roller paving head: The grooves on the rotating roller are oriented shavings.
- Layered paving system: The multi-layer paving head successively covers the surface and core layers, usually 3 layers (table-core-table) or 5 layers (table-core-table-core-table).
- Metering system: Shavings flow is controlled by belt scales or sensors to ensure consistent thickness and density of each layer.
Pavement head quantity and layered structure
- 3-layer structure (surface- core - surface) : Generally requires 2 to 3 paving heads (1 surface layer, 1 core layer, or special paving heads respectively cover the upper and lower surface layer).
- 5-layer structure (surface-core-surface-core-surface) : 3 to 5 paving heads may be required, each layer is independently controlled.
- Multi-layer structure: High-end production lines may use more paving heads to achieve finer mechanical property control.
Paving line workflow Example (Using Layer 3 OSB as an example)
First paving head (surface) :
The directional paving head arranges the shavings lengthwise to form the lower directional layer.
Second paving head (core layer) :
Random paving head transverse or disordered paving to form a core layer.
Third paving head (surface) :
The directional paving head is again paved lengthwise to form the upper directional layer.
Post-paving treatment:
The slab is initially compacted by prepress, and then cured by hot press after trimming.
Our factory have exported many wood based panel machine to different countries and got good feedback
We can design and offer factory layout
Offer installation service
Offer life span service
China lead manufacturer of Wood based panel machine, mainly include OSB making machine, Particle board making machine, MDF making machine and Plywood making machine
Equipped with high technology processing lathes, experienced workers and engineers, professional technology team, we can offer and design good and suitable woodworking machinery for you
A:If the full production line, we will seperately deliver machines to you in every 3 months
A:Yes, we can send our engineers to your factory install machine with your workers together
